Material： Silicon-Chrome steel, base on German DIN 17223 standards.
Make use of the scope：The high tension compressible coil spring, using in the static
state and the oscillatory burden.
★ This product has both gold and blue colors.
|

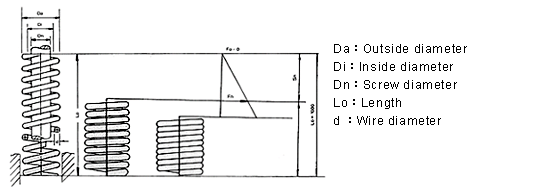

Model
|
Da
|
Di
|
d
|
Sn(%)
|
Fn(kg)
|
|
RS04*1000
|
3.8
|
2.8
|
0.5
|
32%
|
0.7kg
|
|
RS09*1000
|
8.4
|
5.4
|
1.5
|
45%
|
8.0kg
|
|
RS10*1000
|
9.8
|
6.4
|
1.6
|
35%
|
13kg
|
|
RS12*1000
|
11.9
|
8.5
|
1.7
|
35%
|
14kg
|
|
RS14*1000
|
13.5
|
9.0
|
2.25
|
32%
|
23kg
|
|
RS17*1000
|
16.4
|
11.2
|
2.6
|
32%
|
24kg
|
|
RS20*1000
|
19.8
|
13.4
|
3.2
|
32%
|
44kg
|
|
RS26*1000
|
25.5
|
17.2
|
4.2
|
32%
|
80kg
|
|
RS31*1000
|
30.5
|
21.1
|
5.0
|
35%
|
130kg
|
|
RS38*1000
|
37.5
|
26.3
|
6.0
|
32%
|
165kg
|
|
RS45*1000
|
44.2
|
30.8
|
6.7
|
45%
|
185kg
|
|
RS51*1000
|
51.0
|
36.0
|
7.5
|
42%
|
252kg
|
|
